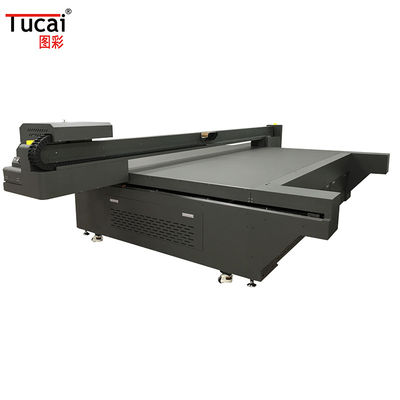

Ricoh G5 Digital UV Printer Printhead 3.2m Dtg Shirt Printer For Glass Phone Case Acryli
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | TUCAI |
| Certification | CE certification |
| Document | Product Brochure PDF |
| Price | $39,999.00/sets >=1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Inkjet Printer | Print Dimension | 320*200 |
|---|---|---|---|
| Applicable Industries | Garment Shops, Building Material Shops, Home Use, Printing Shops, Advertising Company | Condition | New |
| Plate Type | Flatbed Printer | Usage | Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer |
| Automatic Grade | Automatic | Color & Page | Multicolor |
| Voltage | 110-220V | Dimensions(L*W*H) | 290CM*500CM*137CM |
| Weight | 1800 KG | Warranty | 2 Years |
| Ink Type | UV INK | Key Selling Points | High Productivity |
| Marketing Type | Ordinary Product | Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Other | After Warranty Service | Online Support |
| Local Service Location | None | Showroom Location | None |
| After-sales Service Provided | Online Support | ||
| Highlight | Ricoh G5 Digital UV Printer,Digital UV Printer Printhead 3.2m,dtg shirt printer For Glass |
||
Product Description
Ricoh G5 Printhead 3.2m Print Width Digital Printing Machine Inkjet Led UV Flatbed Printer For Glass Phone Case Acryli
Company Information
|
product category |
Flatbed UV Printer |
|
model |
FX3220 |
|
Quantity of nozzles |
2-82-8 PCS (3 PCS as standard) |
|
Print Head |
GEN5(Ricoh) |
|
The thickness of the medium |
1-100mm(customizable) |
|
Printing size |
3200*2000mm Max |
|
Productivity: |
12-60 sqm/h |
|
Ink Set: |
K/Y/C/ M/W/LC / LM / Varnish |
|
Print accuracy: |
720*600dpi/720*90dpi/720*1200dpil |
|
Machine power: |
4500W(The fan power 3000W) |
|
Ink: |
UV curable |
|
Interface |
USB 3.0 |
|
Power supply |
AC 220 V ± 5%, Hz≥20A |
|
Dimensions |
Machine(L*W*H):2900*5000*1370mm |
|
Weight (with stand) |
N.W:1800KG |
|
Electrical requirements |
Temperature 20-35°C Humidity 30-70% |
Product Description

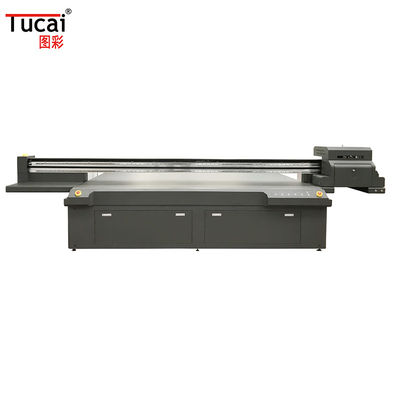

New Design 3.2m Print Width 3220 UV Flatbed Printer
Ricoh FXIIIG5-3220 equipment is a high-precision large UV flatbed machine, can be equipped with 2-16 Ricoh G5 nozzle, printing speed up to 60m2/h; Achieve high precision output up to 720*1200 DPI to meet customer production needs; The maximum width of print is 3200mm*2000mm. Print mode has 4C/6C/4C+W/6C+W/4C+W+V/6C+W+V/ double 4C/ double 6C/ can print crystal 8D and embossed effect. Products commonly known as universal printer, can print a wide range of media such as: glass, acrylic, wood, ceramic tile, metal plate, PVC board, ABS, light sheet, soft film, plastic shell and other materials. Products are suitable for many fields, such as: advertising, home decoration building materials, electronic 3C, handicrafts and other industries.
1. Imported ricoh G5 steel sprinkler head
One nozzle two channels, standard with 3, WW+CM+YK
Can add sprinkler head, color sprinkler head OR white sprinkler head OR light oil sprinkler head, up to eight color printing W+C+M+Y+K+Lc+Lm+V

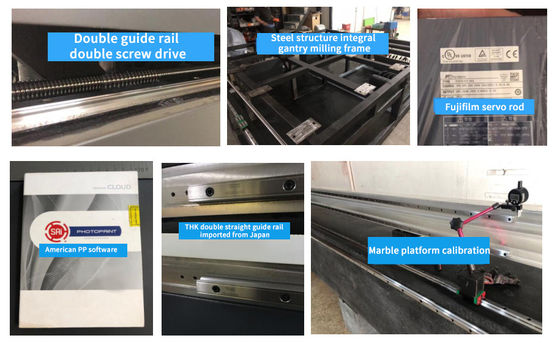

2, all steel structure integral gantry milling frame
3. Open mold cast aluminum beam, calibrated by marble platform
4, Japan THK high precision silent double linear guide rail
5, Japan Fuji servo motor
6. Taiwan Shangyin high precision grinding screw
7. Segmental adsorption platform
8. German Eagus drag chain
9, genuine American PP software (one machine one code)
